Emerald K6+ ECU - Generic



K6+ ECU - Generic

Emerald engine management system is an aftermarket standalone ECU that is capable of handling full 3D mapping of both ignition and injection on most normally aspirated and turbo engines – from classics through to the latest engine designs. Our "2D vs 3D" article in Knowledge Zone will give you more detailed info about 3D mapping.

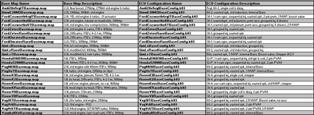

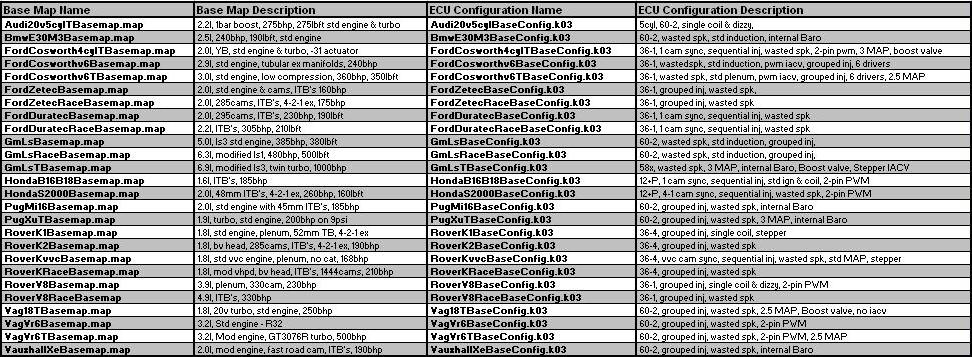

Included Basemaps & ECU Configurations The K6+ ECU - Generic, is supplied with 26 Base maps and 26 ECU configurations to suit the most common engine arrangements.  All Generic K6+ ECUs are supplied with a pre-installed base map suitable for a normally aspirated, conventional 4 cylinder 16v engines fitted with port throttles and producing circa 200 bhp.

The additional Base maps and ECU configurations provided are intended to provide a starting point for setting up the K6+ ECU for your specific engine and modification to both the Base map and ECU configuration will be required in all cases.  Once up and running, full mapping on a Rolling Road is highly recommended.

A User Manual, dedicated "ECU Configuration guide" and  "Quick start guide" are all supplied in pdf form along with our latest PC software.  To see the Base maps & ECU configurations included with a Generic K6+ ECU please click to enlarge the picture above.

The initial configuration and setup of the K6+ ECU, although not complicated, does require a certain level of understanding to complete successfully, and can be made all the more daunting if the engine in question is something a little out of the ordinary.  For cases such as these, or if you would just prefer it, please select "Emerald K6+ ECU - Pre-configured" and the configuration and setup of the K6+ ECU will be done for you.

Dave Walker's "Engine Management Basics" article as well as other projects and articles in our "Knowledge Zone", "Projects" and "Walker's Workshop" could be of interest for you.

K6+ ECU specification in Brief:

  • 6 ignition & 6 injection drivers

  • 3 speed triggers, digital or inductive

  • Air, Coolant & Baro corrections

  • TPS and/or MAP load reference

  • IACV contorl, VTEC & VVT control

  • Boost control & EGT input

  • Wide Band Lambda input with Adaptive mapping

  • Triple map switching.

  • CAN interface. Version 2.0B protocol at up to 1Mbit/sec

See our K6+ ECU info & specifications for more info.

K6+ Generic ECUs include the following:

  • K6+ Generic ECU

  • Serial Comms lead

  • Software CD

Work is always ongoing to add more features and functionality to cater for the ever-growing diversity of engines and customer requirements. So please check back from time to time.

This Generic kit is intended for people who are familiar with Emerald ECUs and who have prior experience of ECU installation, configuration and calibration.

Before ordering please make sure that our ECU will satisfy your requirements. If in doubt get in touch.

Generic K6+ ECUs normally ship within 2-3 working days.

Availability: In stock

Excl. Tax: £695.00 Incl. Tax: £834.00
